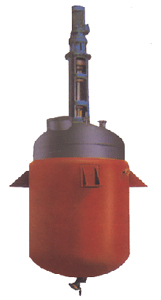

Main technical parameters of heat transfer oil circulation heating and steam heating stainless steel reaction pot
| Specifications L |
Inner cylinder diameter Ø MM |
Jacket diameterØmm |
Motor PowerKW |
Reducer model |
Stirring speed r.p.m |
| 30 |
400 |
500 |
0.6-1.1 |
M2 |
60-80 |
| 50 |
500 |
600 |
0.6-1.1 |
M3 |
60-80 |
| 100 |
550 |
650 |
1.1-1.5 |
M4 |
60-80 |
| 150 |
600 |
700 |
2.2 |
M6 |
60-80 |
| 200 |
650 |
750 |
2.2 |
M6 |
60-80 |
| 300 |
800 |
900 |
2.2 |
M6 |
60-80 |
| 500 |
900 |
1000 |
2.2 |
M6 |
60-80 |
| 800 |
1100 |
1200 |
4 |
M8 |
60-80 |
| 1000 |
1200 |
1300 |
4 |
M8 |
60-80 |
| 1500 |
1300 |
1400 |
4 |
M8 |
60-80 |
| 2000 |
1400 |
1500 |
4 |
M8 |
60-80 |
| 2500 |
1400 |
1500 |
7.5 |
BLB7.5-4-13 |
90 |
| 3000 |
1400 |
1500 |
7.5 |
BLB7.5-4-13 |
90 |
| 3500 |
1400 |
1500 |
7.5 |
BLB7.5-4-13 |
90 |
| 4000 |
1500 |
1600 |
7.5 |
BLB7.5-4-23 |
63 |
| 5000 |
1600 |
1700 |
7.5 |
BLB7.5-4-23 |
63 |
| 6000 |
1800 |
1900 |
15 |
BLB15-5-13 |
100 |
| 8000 |
2000 |
2100 |
15 |
BLB15-5-13 |
100 |
| 32000 |
3000 |
3200 |
37 |
BLB450-11-45 |
50-100 |
Other special specifications can be designed separately.
Heat transfer oil circulation heating is suitable for reaction pots and resin equipment above 500L
When ordering the above equipment, it is necessary to specify the working pressure, working temperature, and working medium. |
