Position:Home > Product > Glass lined equipment
Glass lined equipment

Main characteristics of reaction equipment:

Reaction equipment is widely used in industrial production such as chemical, pharmaceutical, petroleum, dye, biochemical, and food industries, especially for various chemical changes in chemical processes. It is necessary for physical changes such as cooling and extraction, based on sufficient mixing of reactants. It serves the chemical process through a series of effective procedures such as stirring, heating, evaporation, and concentration.

Varieties include: glass lined reaction equipment and reaction equipment made of stainless steel and other materials. Our factory can meet customer needs and can design according to customer requirements.

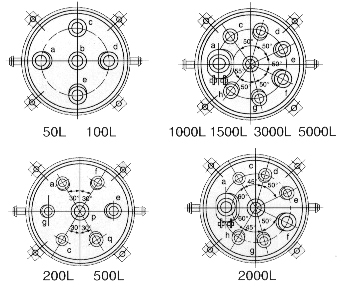

Nominal Capacity(L) Overall dimensions Connection hole specifications
D D1 D2 D3 D4 D5 D6 n-Ф n-d h1 h2 h3 h4 h a b c d e
50 500 602 722 420 300 500 380 4‐18 4‐M16 400 135 840 300 1820 80 80/Singht视 70
100 600 702 822 500 360 600 420 4‐18 4‐M16 550 160 840 340 1910 80 80 70/Singht视 70
200 700 804 930 620 420 670 540 4‐23 4‐M20 740 185 870 420 2170 175 100 80 70 100/Singht视
300 800 904 1032 703 480 760 600 4‐23 4‐M20 810 310 870 370 2470 175 100 80 80 100/Singht视
500 900 1004 1136 803 540 800 630 4‐23 4‐M20 980 335 900 400 2600 175 100 80 70 100/Singht视
1000 1200 1304 1480 1100 720 1100 840 4‐30 4‐M20 1200 410 1010 500 3100 250×350 125 100 100 100/Singht视
1500 1200 1304 1480 1100 720 1100 840 4‐30 4‐M20 1550 410 1010 500 3650 250×350 125 100 100 100/Singht视
2000 1400 1524 1700 1300 840 1300 1000 4‐30 4‐M20 1500 460 1040 490 3485 300×400 125 100 125 100
3000 1600 1754 1934 1440 800 1228 1120 4‐30 4‐M22 1740 510 1330 600 4080 300×400 125 100 100 125/Singht视
5000 1750 1900 2172 1575 850 1340 1220 4‐30 4‐M24 2328 548 1460 700 4820 300×400 125 100 100 125/Singht视
10000 2200 2400 2915 1110 1546 4‐34 4‐M27 3552 1648 1400 5800 300×400 125 125 150 125/Singht视
