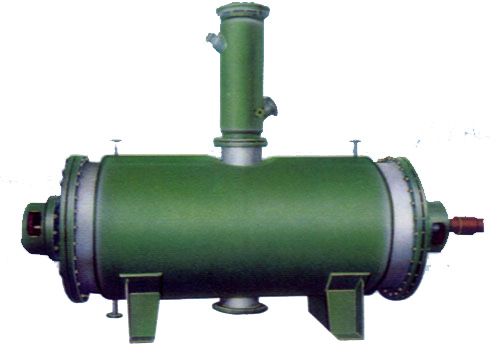

| JN type series vacuum rake dryer |
Product Introduction of Rake Dryer: JN series vacuum rake dryers are widely used in the chemical industry, especially in the organic semi-finished products and dye manufacturing industry. They use steam jackets to indirectly heat materials without exhausting them under vacuum. Therefore, it is particularly suitable for drying materials that are resistant to high temperatures and are prone to oxidation at high temperatures, as well as materials such as solutions that must be recovered in the exhaust gas that are prone to dust generation during the drying process.
This machine has a compact structure, simple operation, stable and reliable performance, and long maintenance cycle. It has been proven through long-term production practice that it has no obvious corrosive materials for carbon steel, and can dry well under appropriate conditions in the form of water containing particles, paste, adhesive, and even solution.
JN series vacuum rake dryer parameters
| 型 号 |
JN-500 |
JN-1000 |
JN-2000 |
JN-3000 |
JN-4000 |
| 容 积L |
500 |
7000 |
2000 |
3000 |
4000 |
| Disposable feeding
kg |
300-350 |
500-750 |
1000-1500 |
2000-2500 |
3000-3500 |
| Heating area
m2 |
2．3 |
4 |
7 |
11．5 |
14 |
| Permissible vacuum (mercury column)
|
400～600 |
| Jacket working pressure
MPa |
<0．6 |
| Supporting power
kw |
4 |
5．5 |
7．5 |
11 |
| Speed r／min |
6－8 |
| Overall dimensions
|
φ800x1100 |
φ900x1500 |
φ1000x2500 |
φ1000x4000 |
φ1200x3800 |
| | |   |
|
|
