Position:Home > Product > CD type alcohol extraction device for traditional Chinese medicine

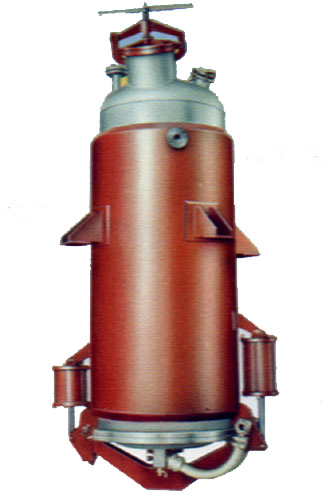

CD type alcohol extraction device for traditional Chinese medicine

This device is a successfully developed product and one of the key equipment for the renovation of a traditional Chinese medicine factory. This device is a product developed based on the needs of continuous improvement of traditional Chinese medicine extraction processes, which is difficult to meet the requirements of alcohol extraction processes and is currently used in various regions.
Project Unit CD-180 CD-500 CD-600 CD-1000 CD-2000 CD-3000
Volume m3 0.18 0.5 0.6 1.0 2.0 3.0
Shape A×B mm φ400×1500 φ600×1800 φ600×2200 φ800×2000 φ1000×2600 φ1000×3900
Internal pressure   Atmospheric pressure ~650mmHg Atmospheric pressure ~650mmHg Atmospheric pressure ~650mmHg Atmospheric pressure ~650mmHg Atmospheric pressure ~650mmHg Atmospheric pressure ~650mmHg
Jacket pressure MPa 0.09 0.09 0.09 0.09 0.09 0.09
Jacket pressure m2 1.4 2.8 3.3 4.0 7.2 8.4
Jacket material   A3 A3 A3 A3 A3 A3
Empty weight of equipment Kg 334 630 701 1070 1600 1950
